M5stack 4IN8OUT Multi-channel DC Drive Module
☑ Eenvoudige montage en installatie
☑ Optimale prestaties gegarandeerd
⇒ Bestel direct, vaar morgen weer

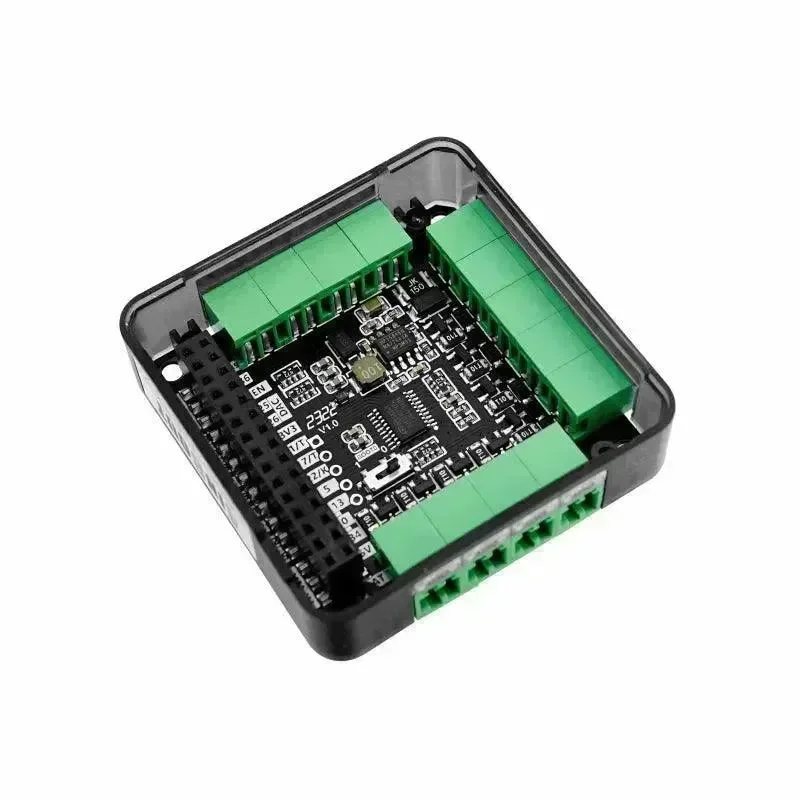

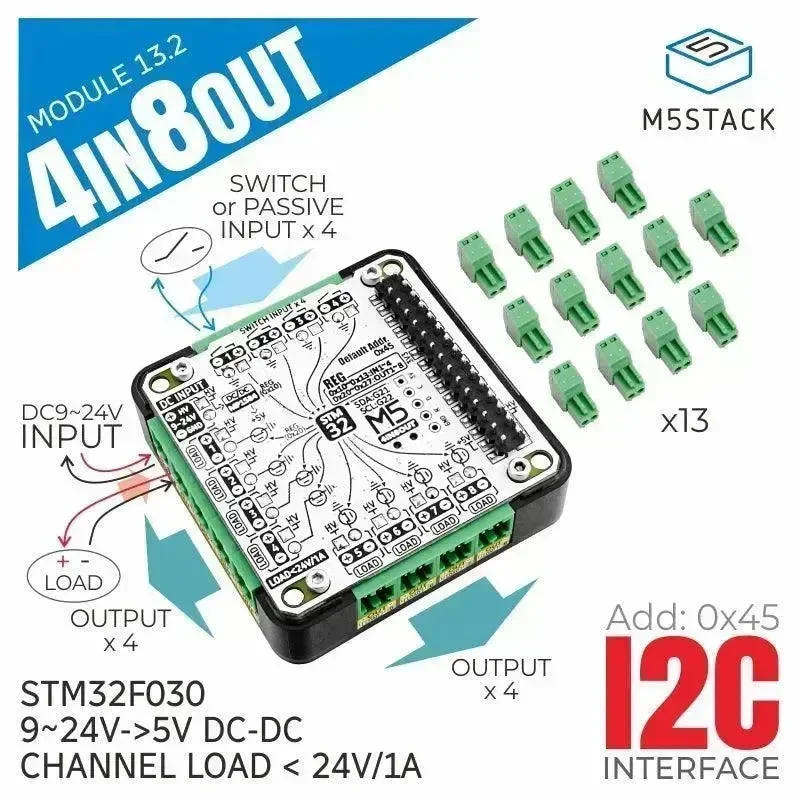

MODULE 13.2 4IN8OUT is a ‘4-Channel Passive Input/Switch + 8-Channel MOS Drive Output’ drive module. Adopt STM32F030 as the I2C IO chip, supporting 9-24V DC input, with internal DC-DC circuitry to 5V.
Product Features
- Compatible with Basic/Fire/Core2
- Adopt STM32F030 as the IO chip, I2C communication, and I2C address is changeable by modifying the register
- 8-channel MOS Drive circuitry shares the same VCC, channel load <1A

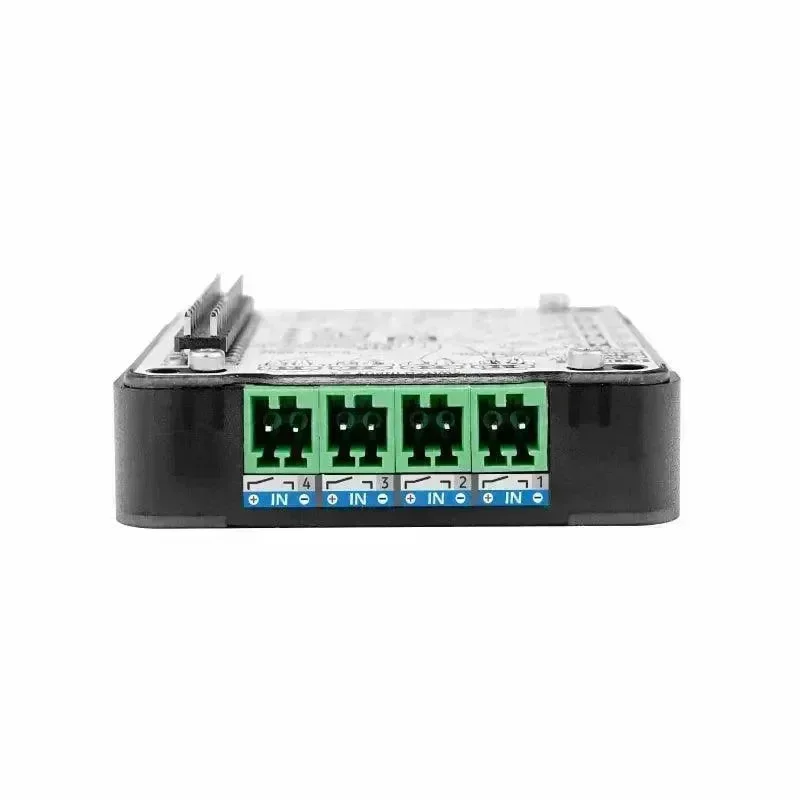

- 4-channel Passive Input share the same GND, no active signal or >5V signal allowed
- With internal MP1584, 9~24V -> 5V DC-DC converter
Include
- 1x MODULE 13.2 4IN8OUT
- 13x 2P Terminal
Application

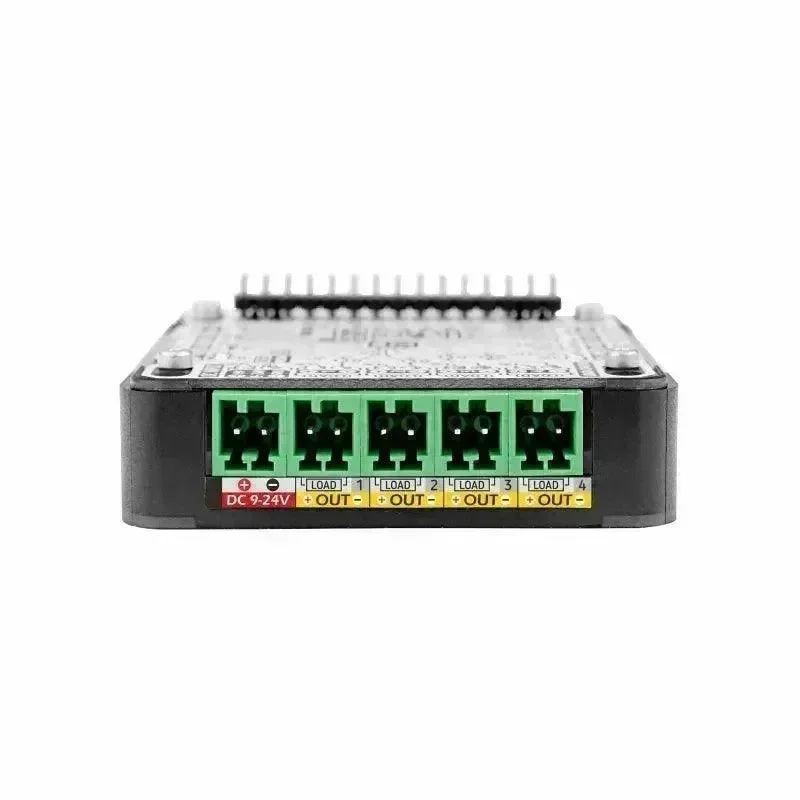

- Multi-channel load drive (Relay, Valva, Single-phase Motor, Singal LED)
- Limit Switch or Button test
Specification
| Input Voltage | 9~24V |
