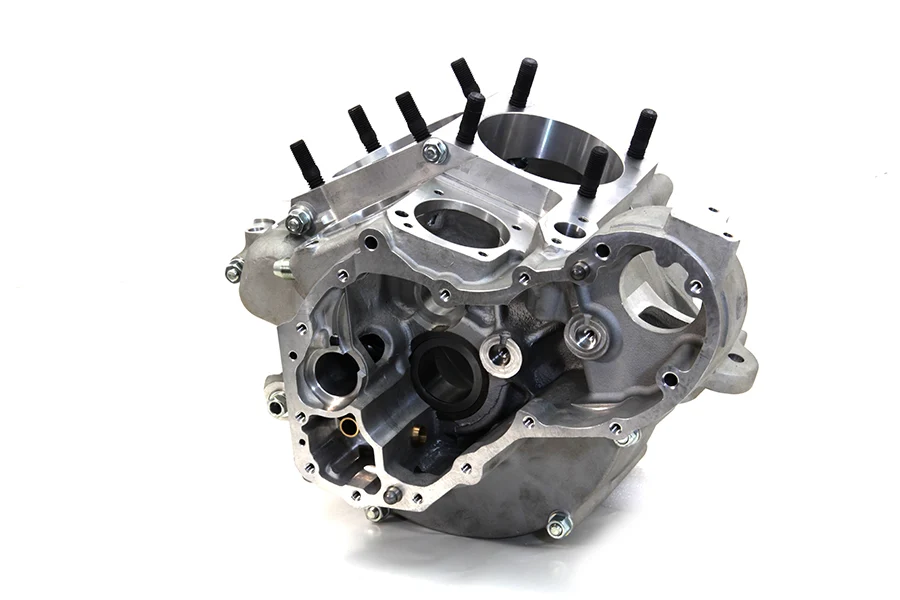

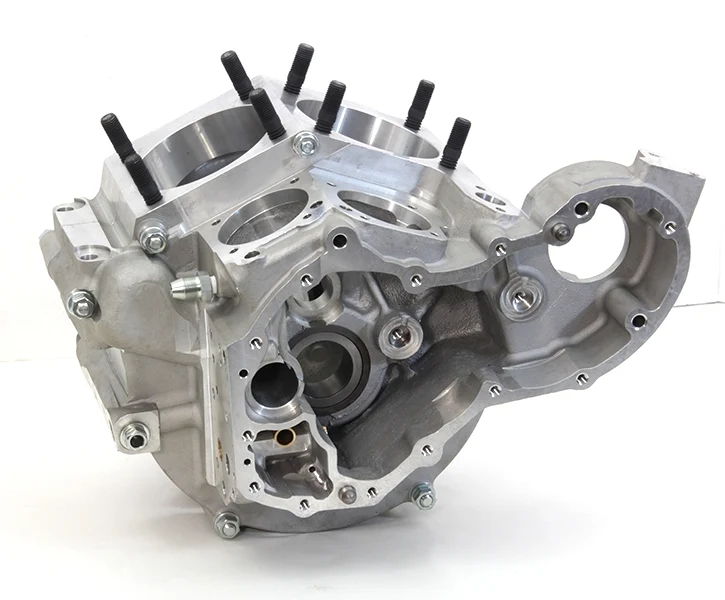

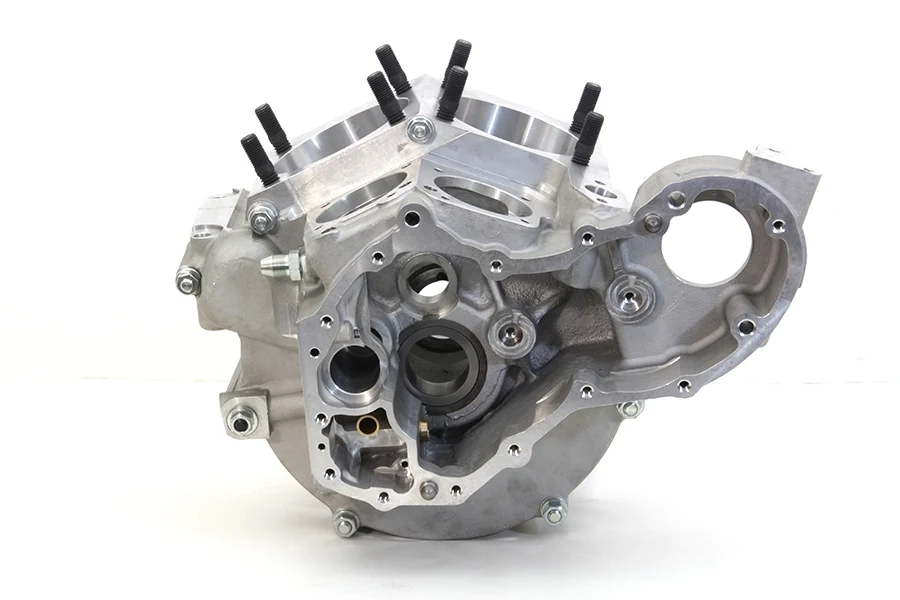

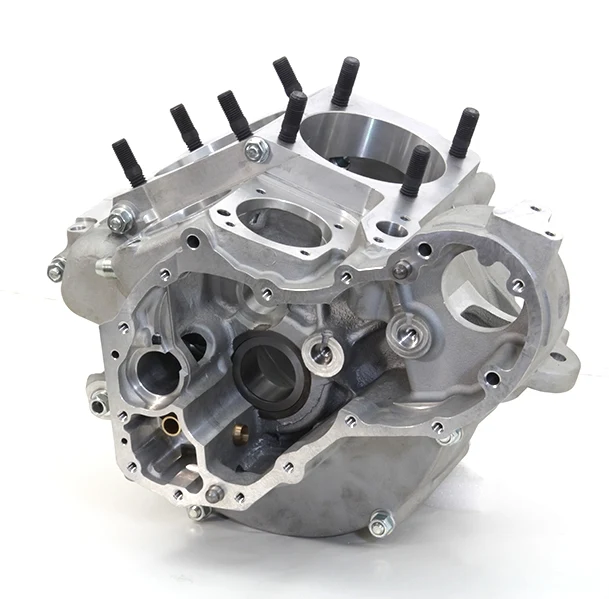

Engine Case Set For Harley-Davidson Knucklehead
- Motor case set features a blank number boss, there are no serial numbers on the case
- Oil from top end returns through pushrod tubes, does not return through cylinder base
- Case accepts loose roller bearings on the sprocket and pinion shaft side
- Case set required line lapping of the main case races (order case race available separately)
- Case set is designed for replacement of the eerste keus cases
- No serial numbers are provided with these case sets
- Case sets do not include pinion and sprocket shaft races
- Case races should be line bored to 1.500″ to accept standard rollers
- Use 2 gaskets when mounting the oil pump body for proper clearance
- Numeral “7” stamped on rear motor mount halves, to denote 74 cubic inch. Builder may stamp these numbers in.
- Fits:
- FL 1941-1947
- EL 1937-1947
